Draw polyline
Polyline is a set of line segments are connected as a single object.
We can make straight-line segments, arc segments, or a combination of both.
When we draw the polyline arc segment, the first point of the arc is the endpoint of the previous segment.
We can determine the angle, center point, direction, or the radius of the arc. We can also finish the arc by specifying the second point and endpoint.
To draw a polyline with straight segments
Steps we have to do is:

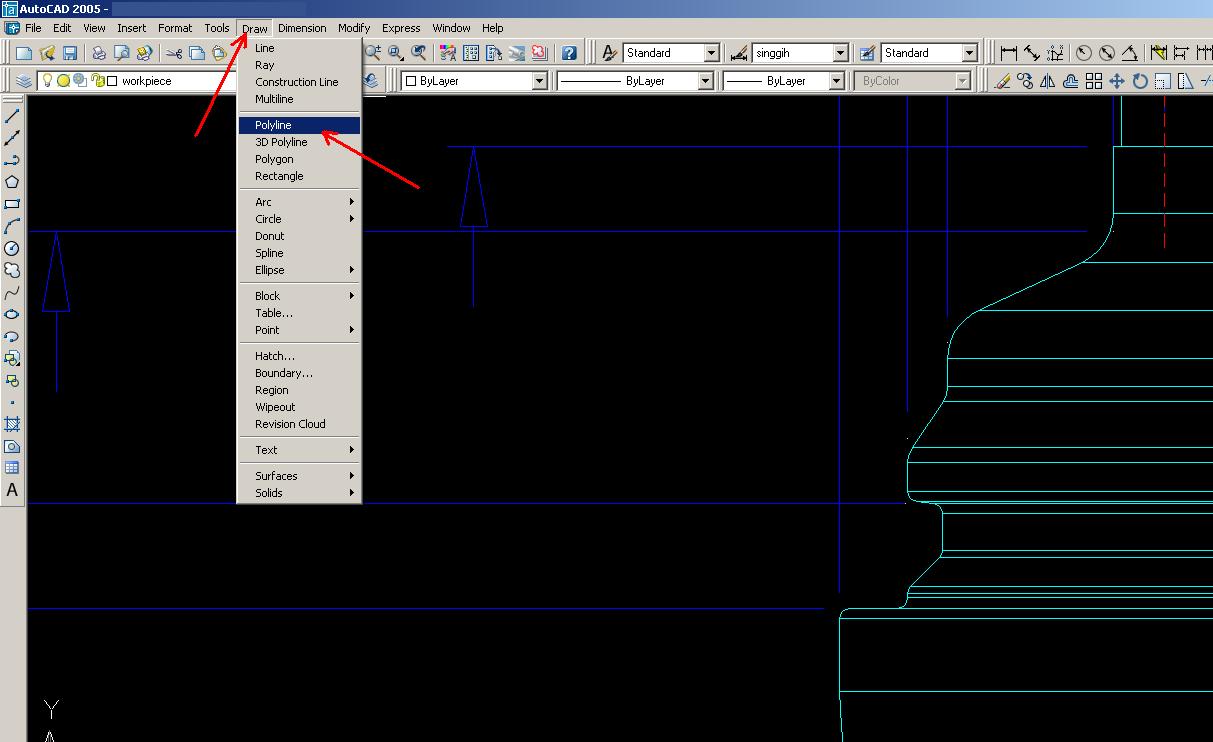

On the Draw menu, click the polyline.
Determine the first point of the polyline.
Determine the end point of the first polyline segment.
Continue to determine the required segment endpoint.
Press ENTER to end, or press c to close the polyline.
To start a new polyline at the endpoint of the last polyline drawn, start PLINE command again and press ENTER at the Specify Start Point prompt
